- Connection: 1.5" Tri Clamp (50.5mm clamp OD)
- 2" Tri Clamp (64mm clamp OD)
- Ball Diameter: 53mm/ 76mm
- Working Pressure: 1-2 bar
- Cleaning Radius:0.5-1.5M
- Fluxation: 12m³/h / 38m³/h

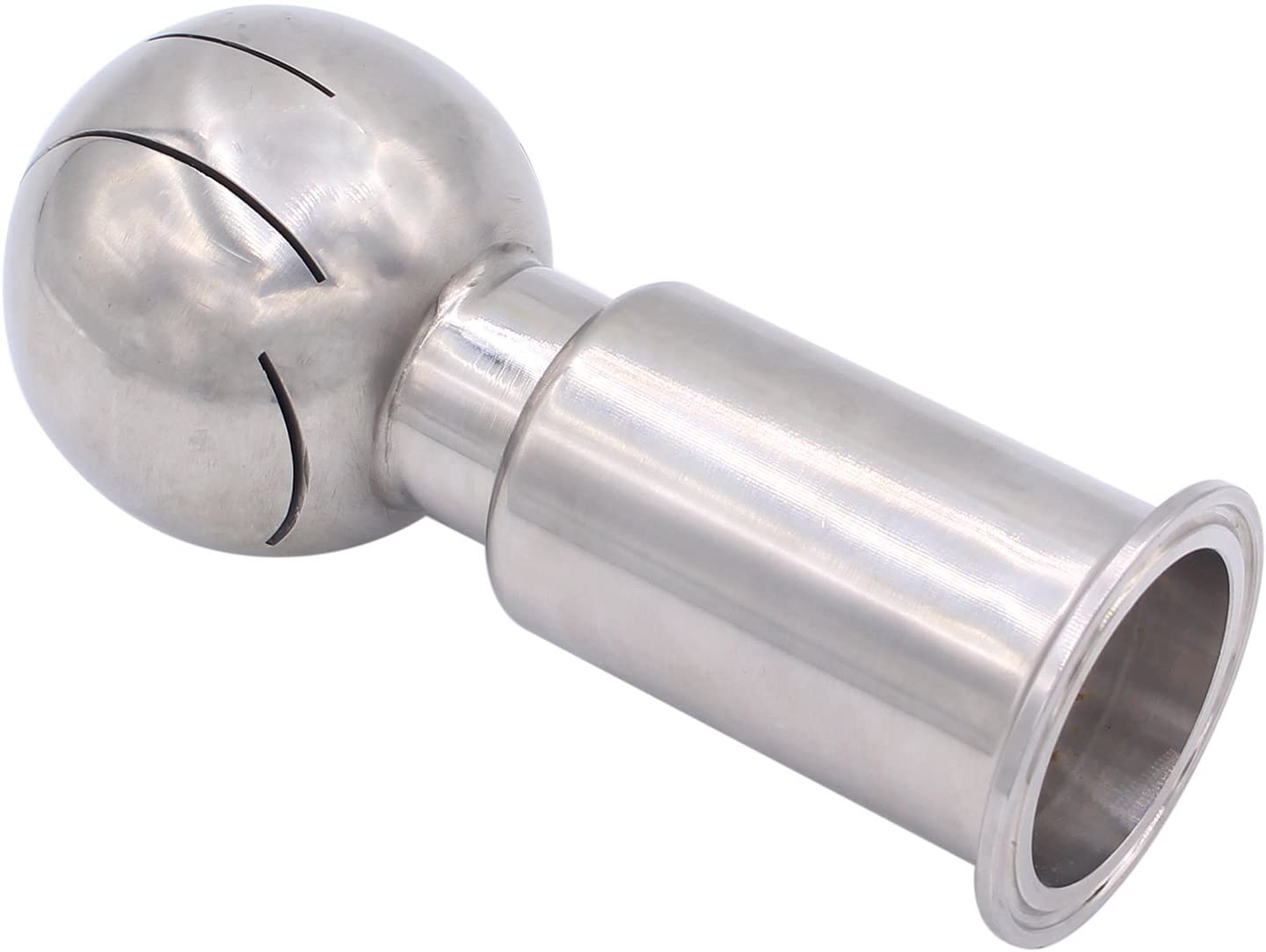

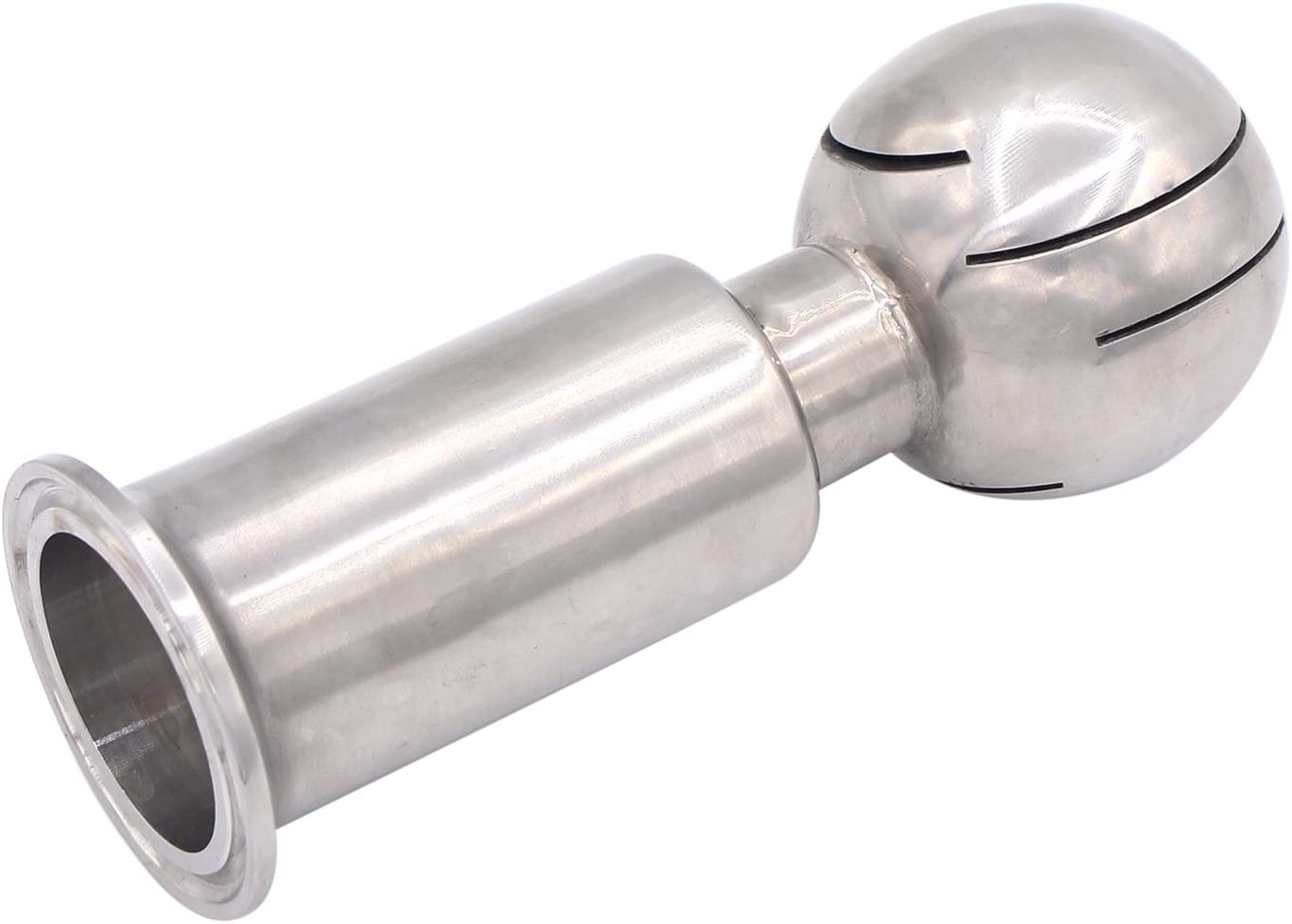

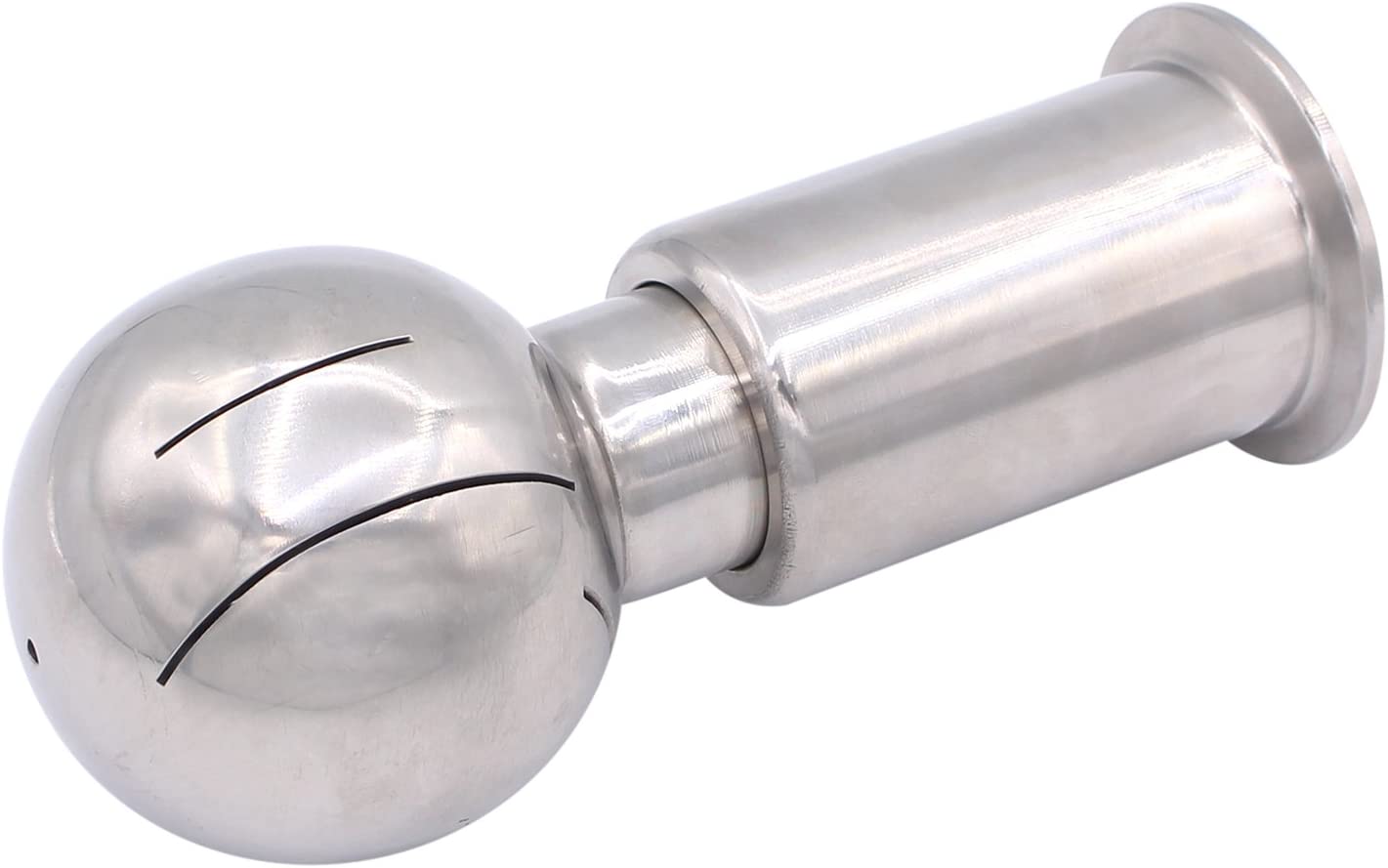

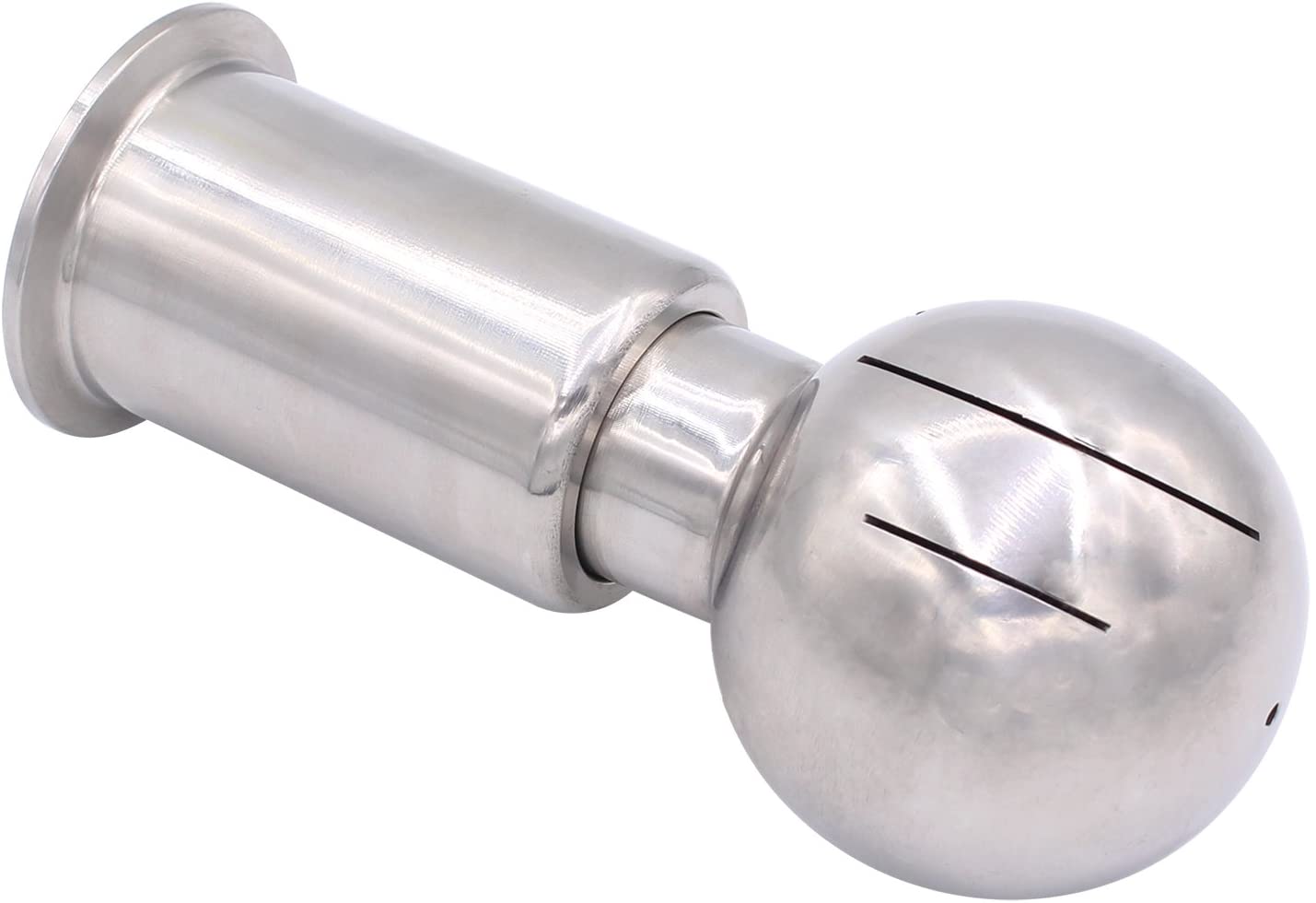

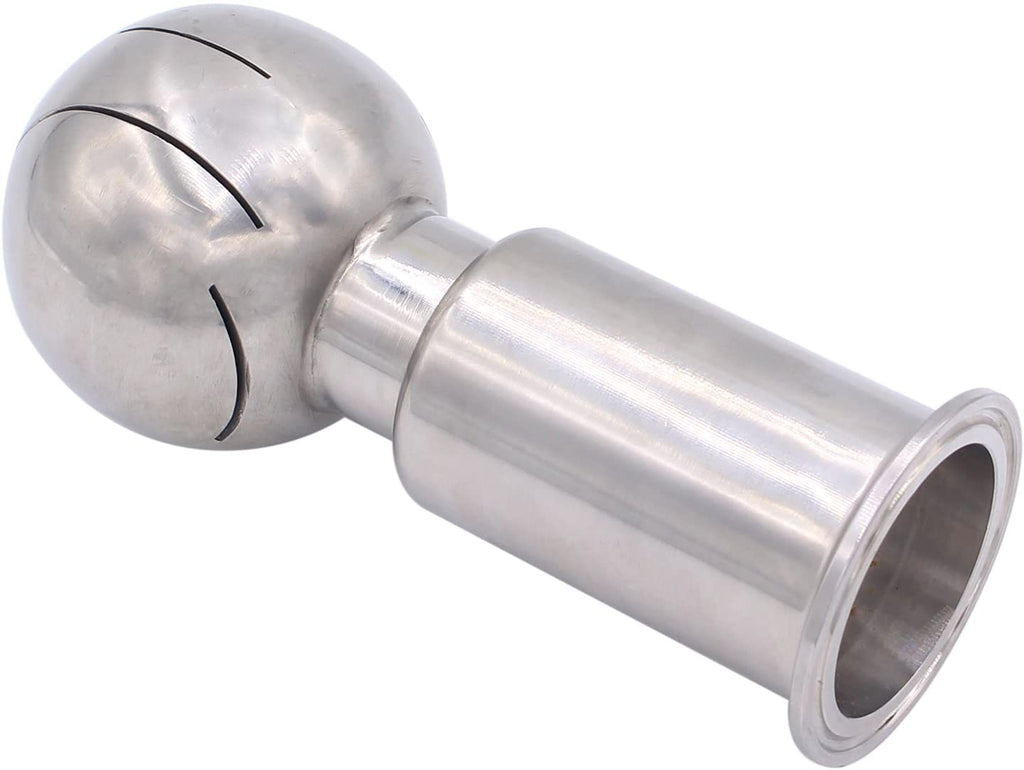

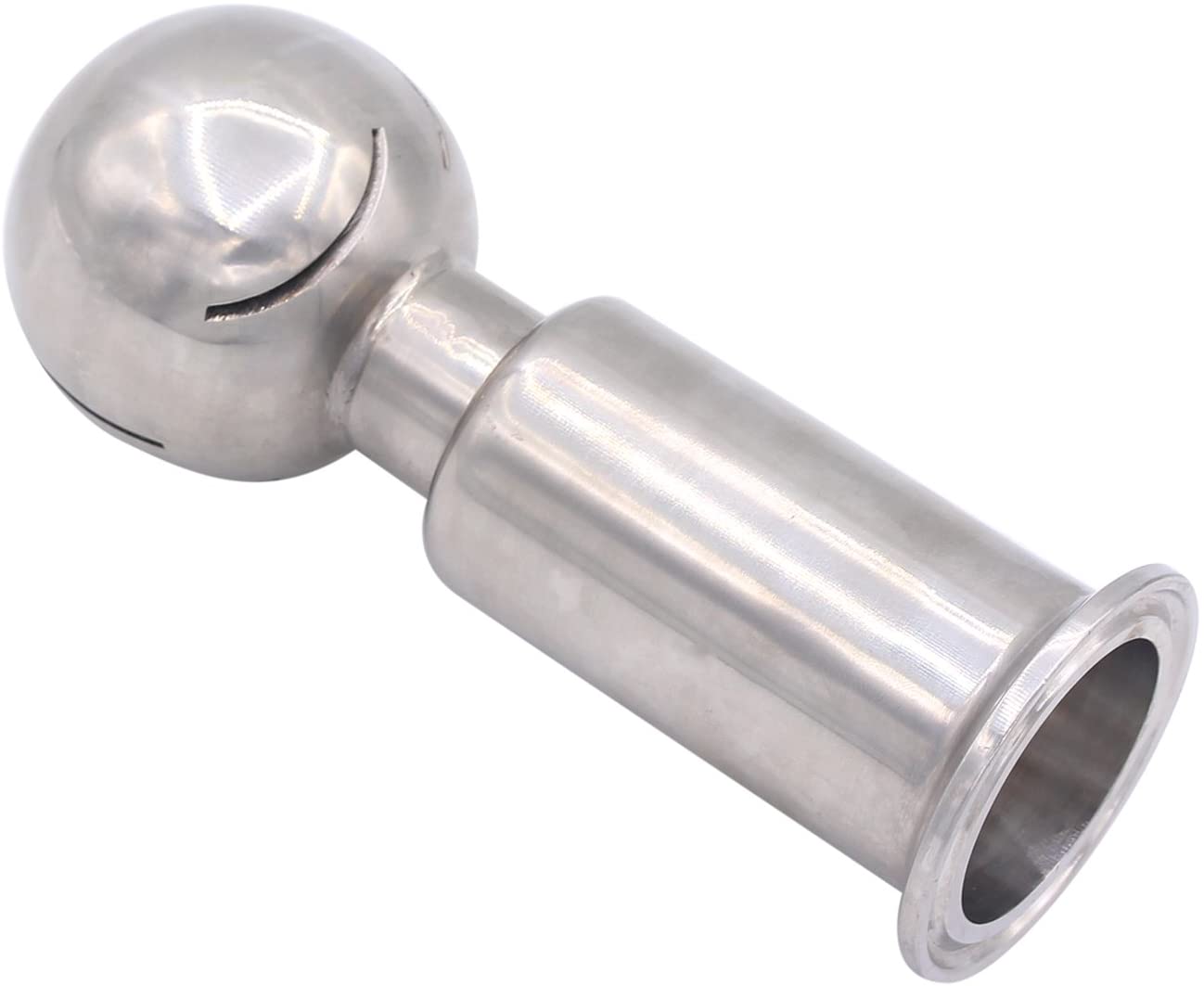

About Spray Ball
DERNORD sanitary rotary spray balls are typically used in food and beverage industry to simplify the interior cleaning of tanks and piping. A fermentation or brite tank can be showered with high-velocity water and/or chemicals on the interior, causing a sheeting action down the vessel walls removing residues and sanitizing the tank. They are designed with a cleaning solution lubrication device , and nozzle is constructed of stainless steel with bearings to eliminate rust.
Widely used in field of food-processing,beverage,beer,pharmaceutical industries.Tank washing, industry cleaning, tube cleaning, pipe/duct work cleaning, chemical processing tanks.
360 ° spray
Rotating Spray Ball provides better spray impact than stationary nozzles due to rotating flat sprays. 360 ° spray coverage without dead angle.
