Features:
- In-line Sight Glass Flow Pipe OD:38MM, Ferrule OD:50.5MM, Fits Tri-clamp:1.5"
- In-line Sight Glass Flow Pipe OD:51MM, Ferrule OD:64MM, Fits Tri-clamp:2"
- In-light Sight Glass Flow Pipe OD:76MM, Ferrule OD:89MM, Fits Tri-clamp:3"
- In-line Sight Glass Flow Pipe OD:102MM, Ferrule OD:119MM, Fits Tri-clamp:4"
- Max Pressure: 120 PSI,Max Temperature: 300 Fahrenheit
- In-line Sight Glass with Clamp End, SUS316 body material
- Full bore design,Sight Glass Flow Indicators provides a full 360 to observe fluid flow in any direction. Can be used in vertical or horizontal position
- The Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries
Details:

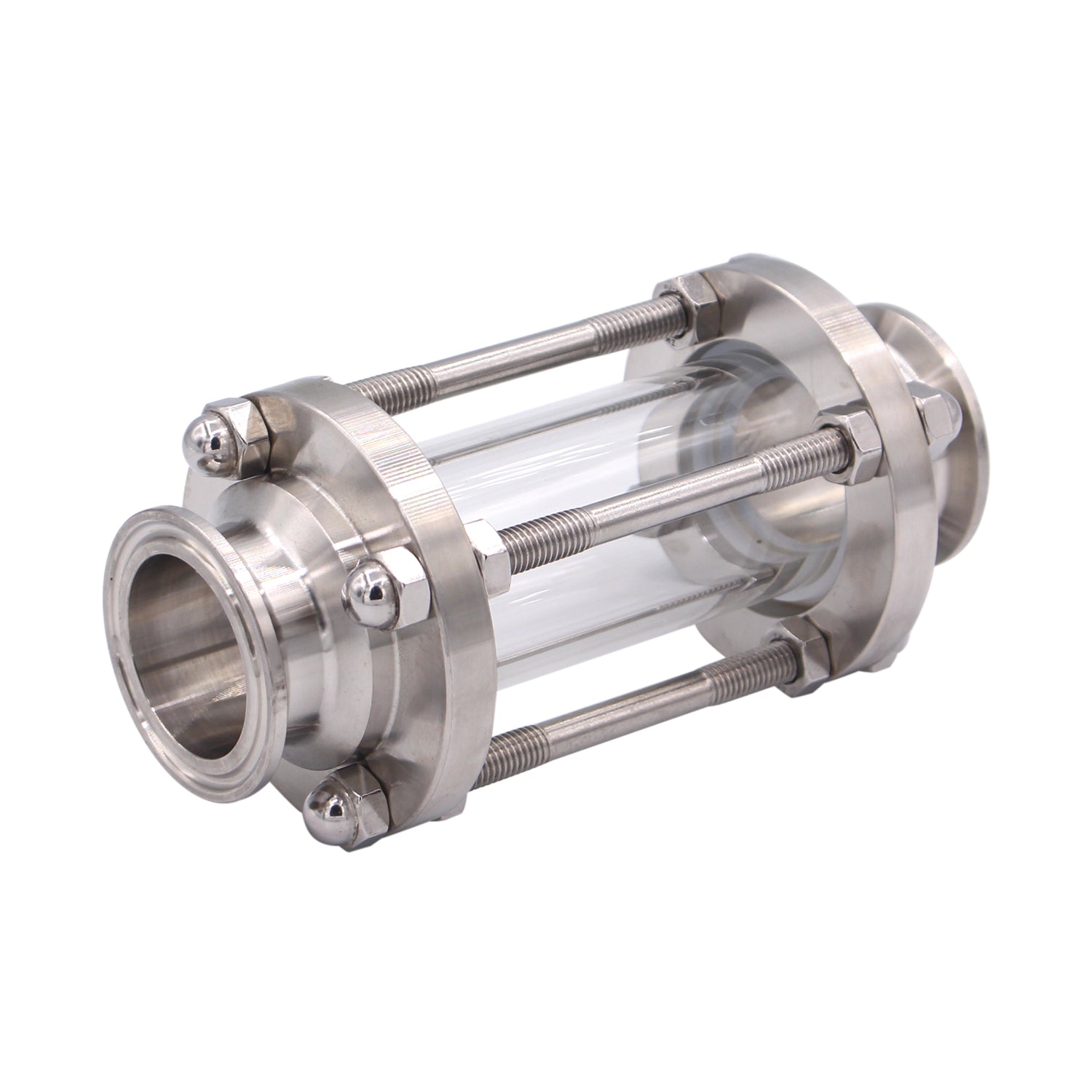

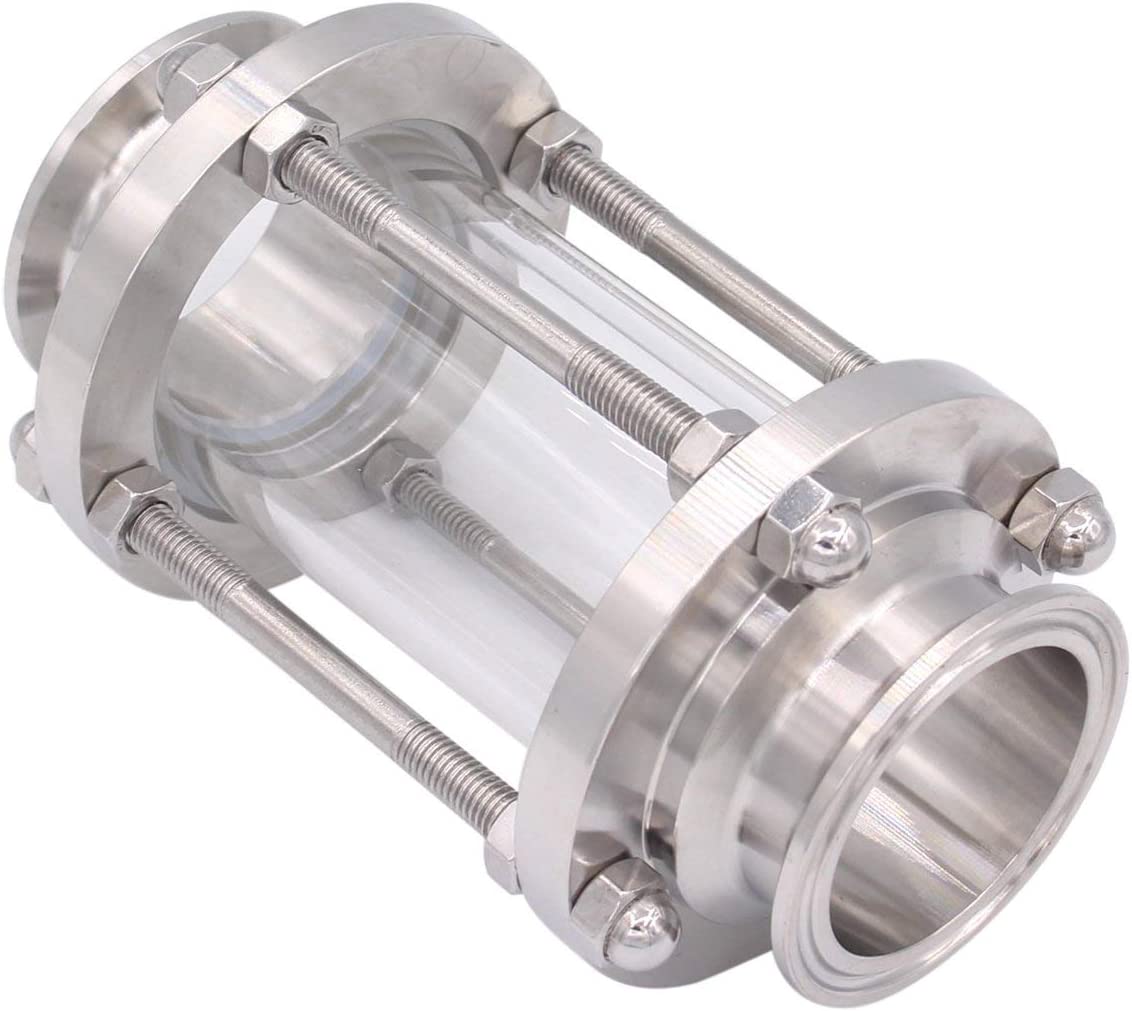

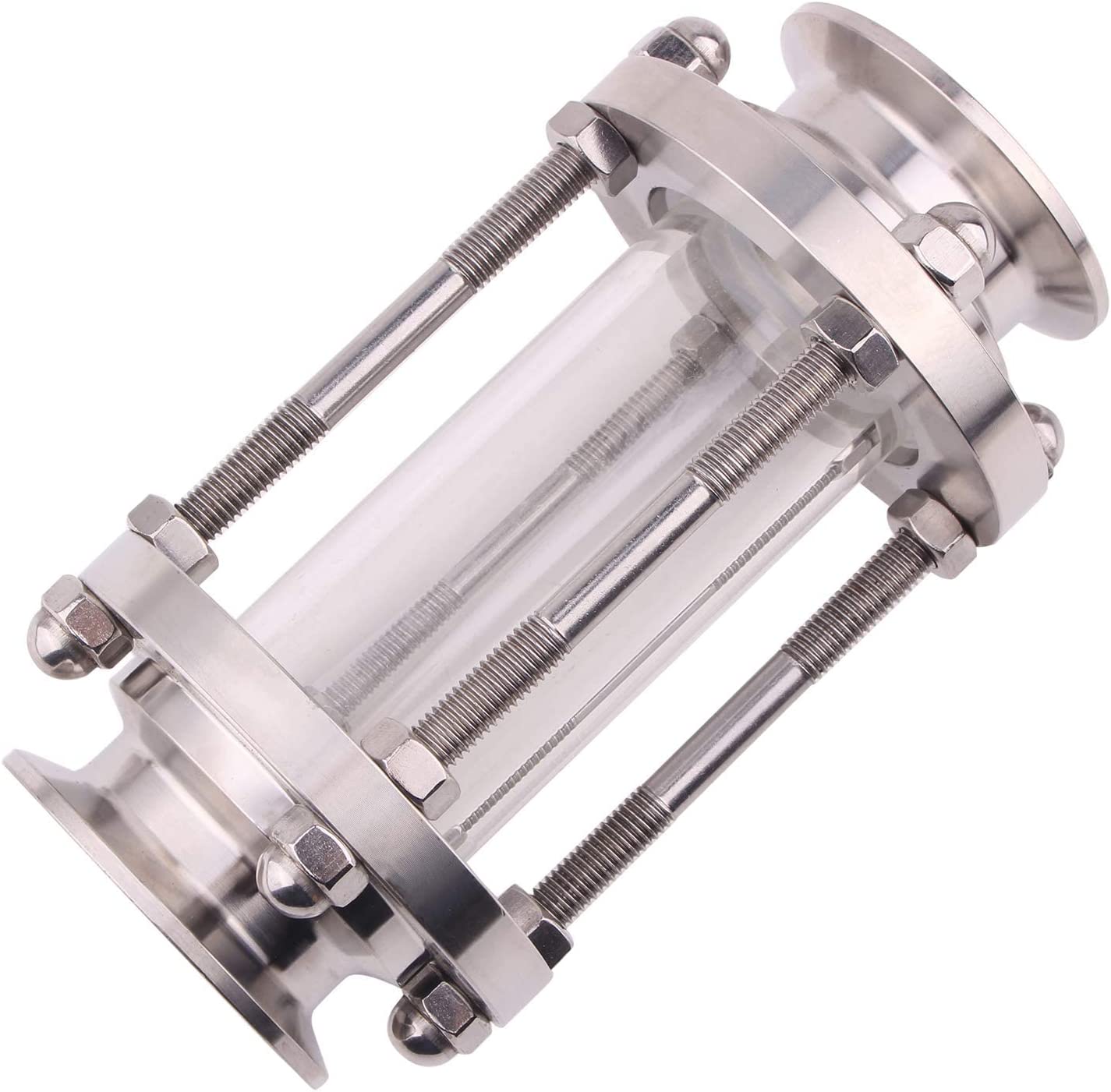

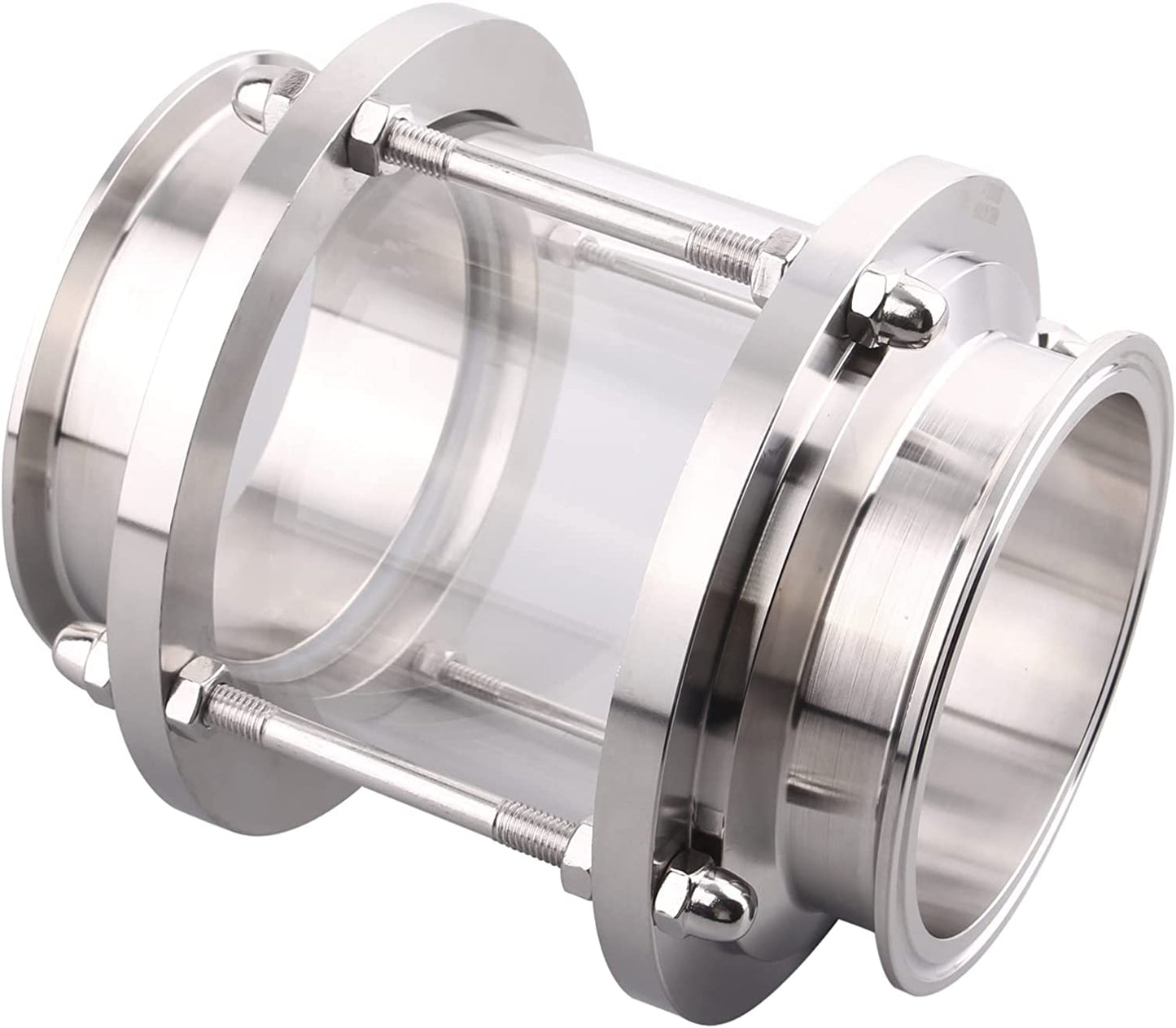

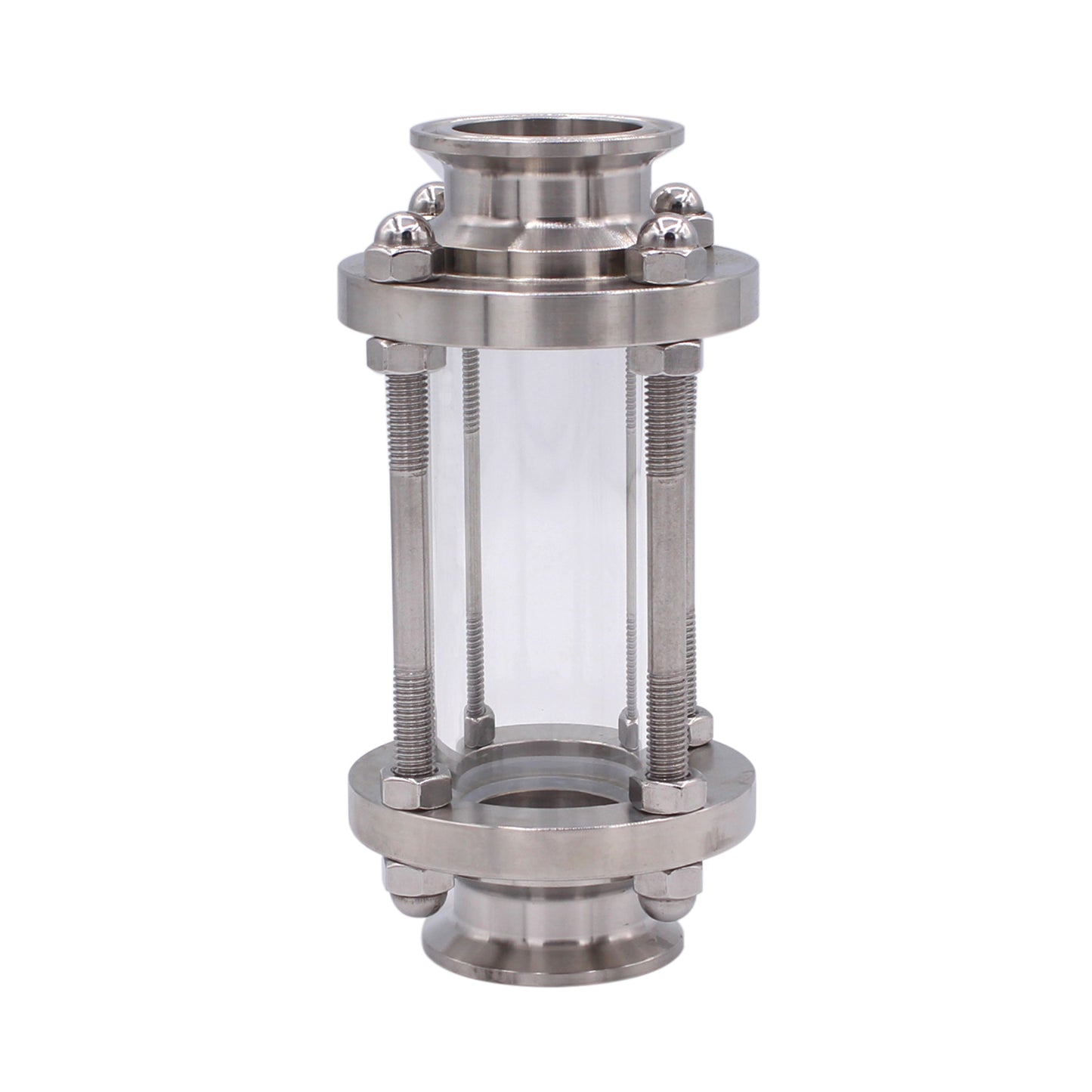

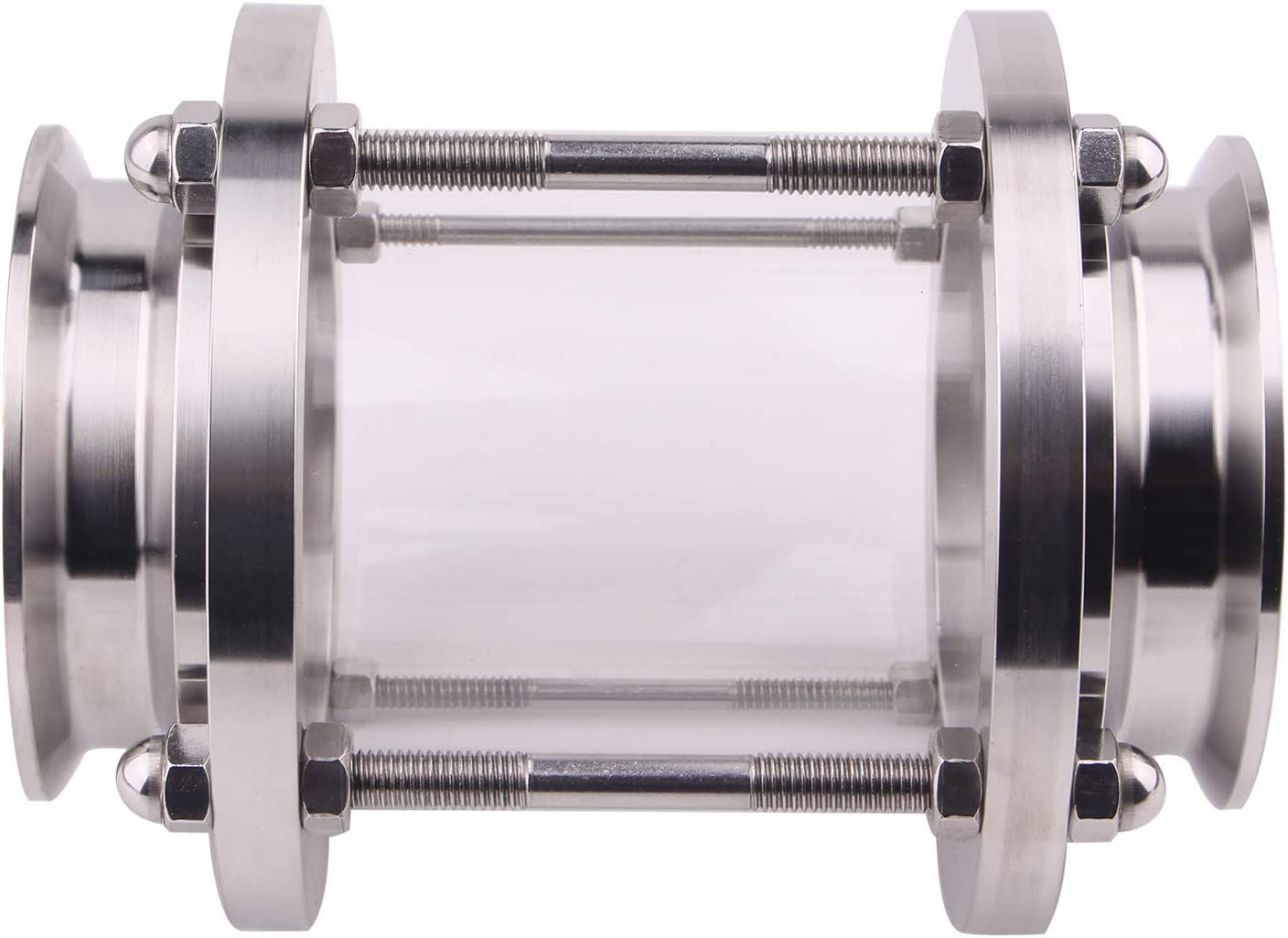

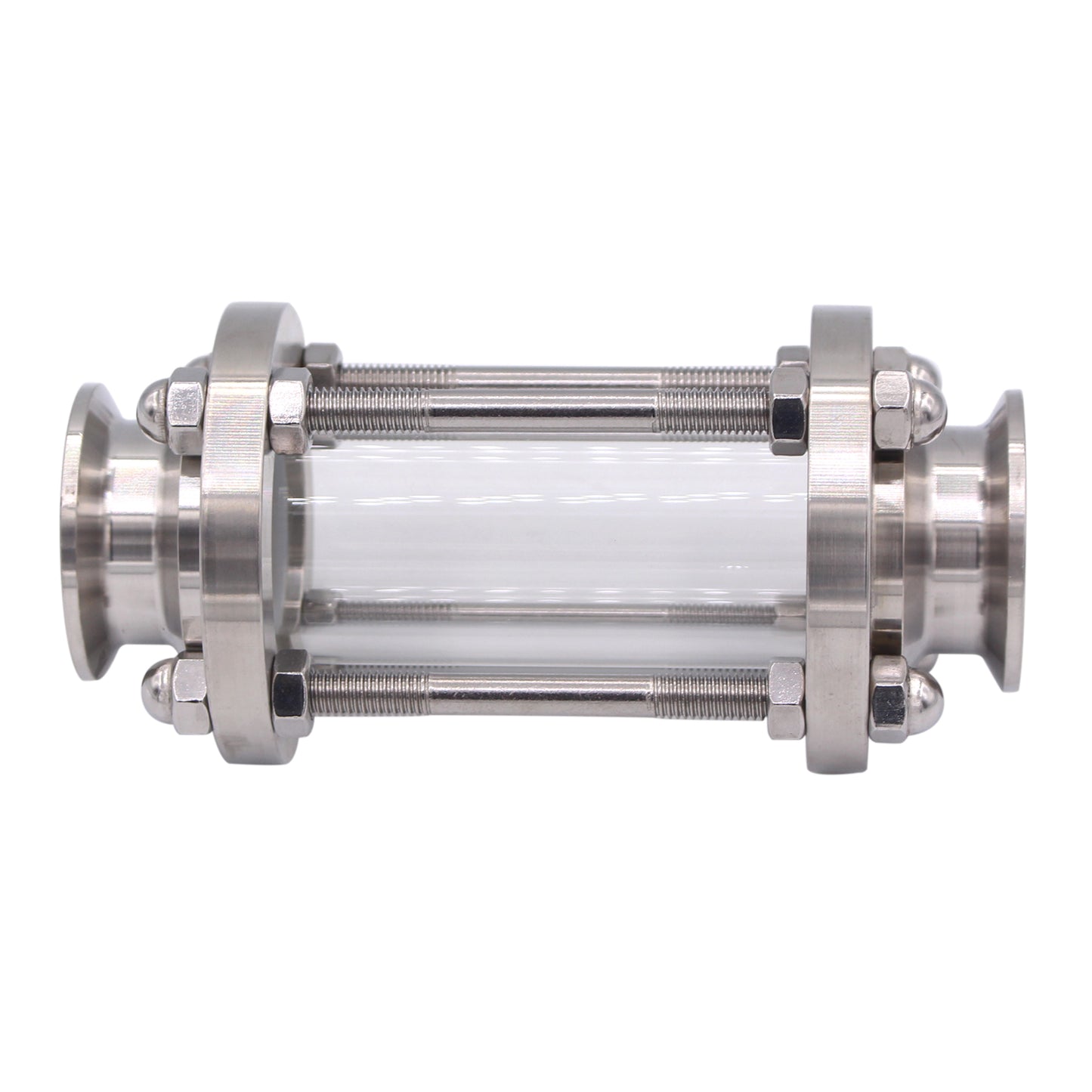

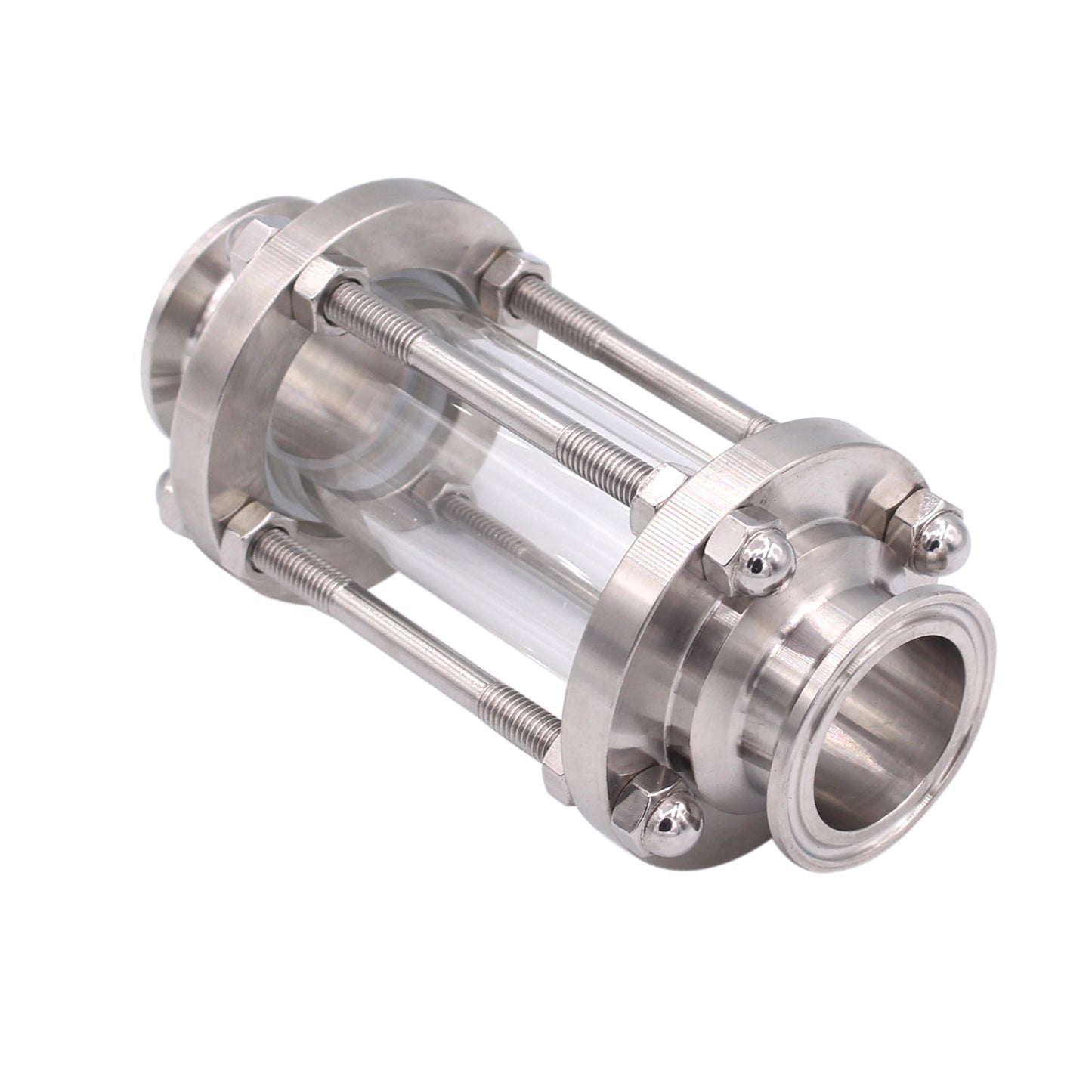

This Dernord Sanitary In-line Sight Glasses are used widely in the food, dairy and beverage sanitary processes to view products and fluids. Sanitary Straight Sight Glasses are constructed with SUS316 housing, Tempered Glass and silicone seals. These In-line Sight Glasses are easier to clean. Moreover, with easily replaceable seals and glass these Dernord Sight Glasses will service you for years.
Dernord Sanitary In-Line Sight Glass Features
Max Pressure: 120 PSI
Max Temperature: 300 Fahrenheit
Tri-clamp size: 1.5inch / 2 inch / 3 inch / 4Inch
Body material: Stainless Steel 316
Glass: Tempered Glass
