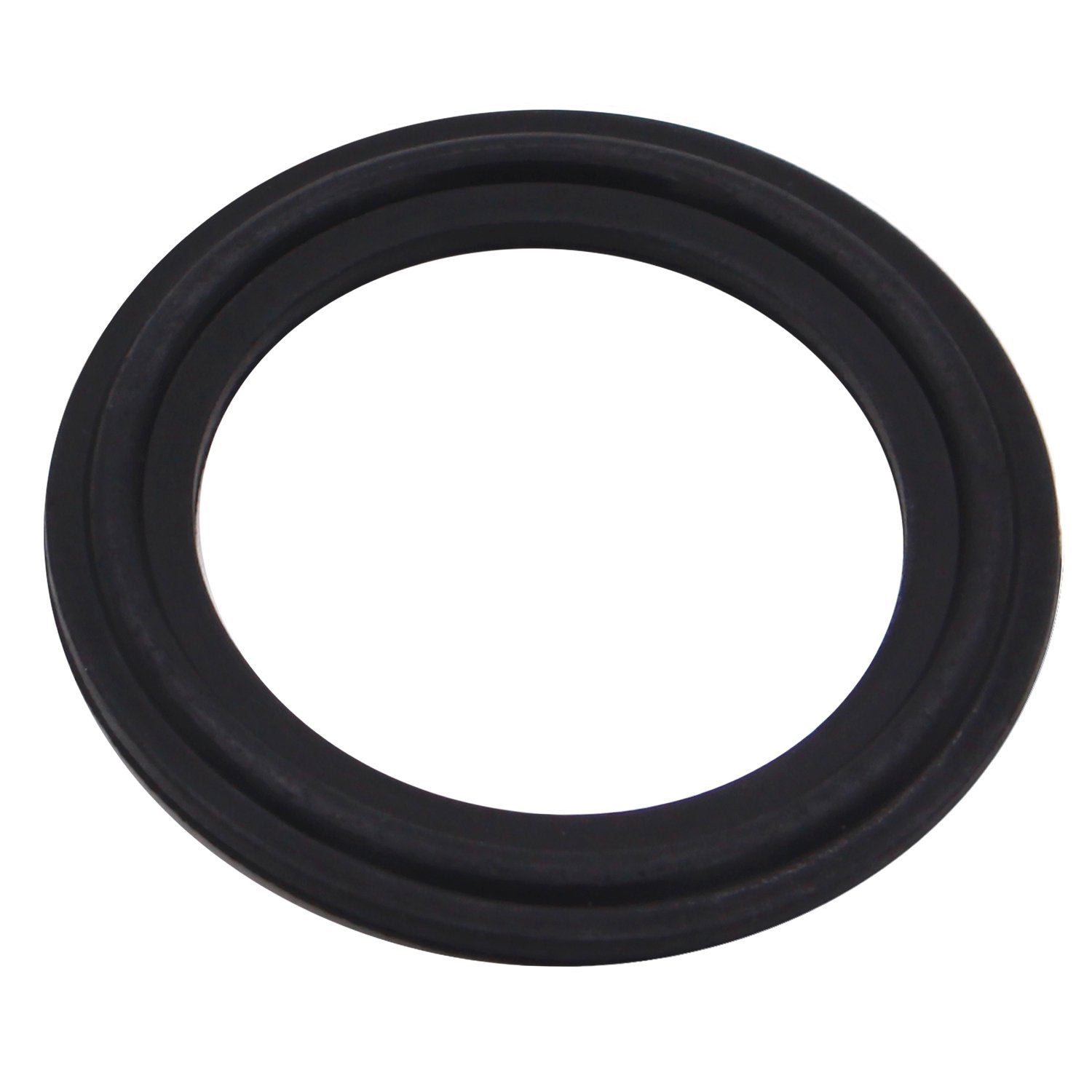

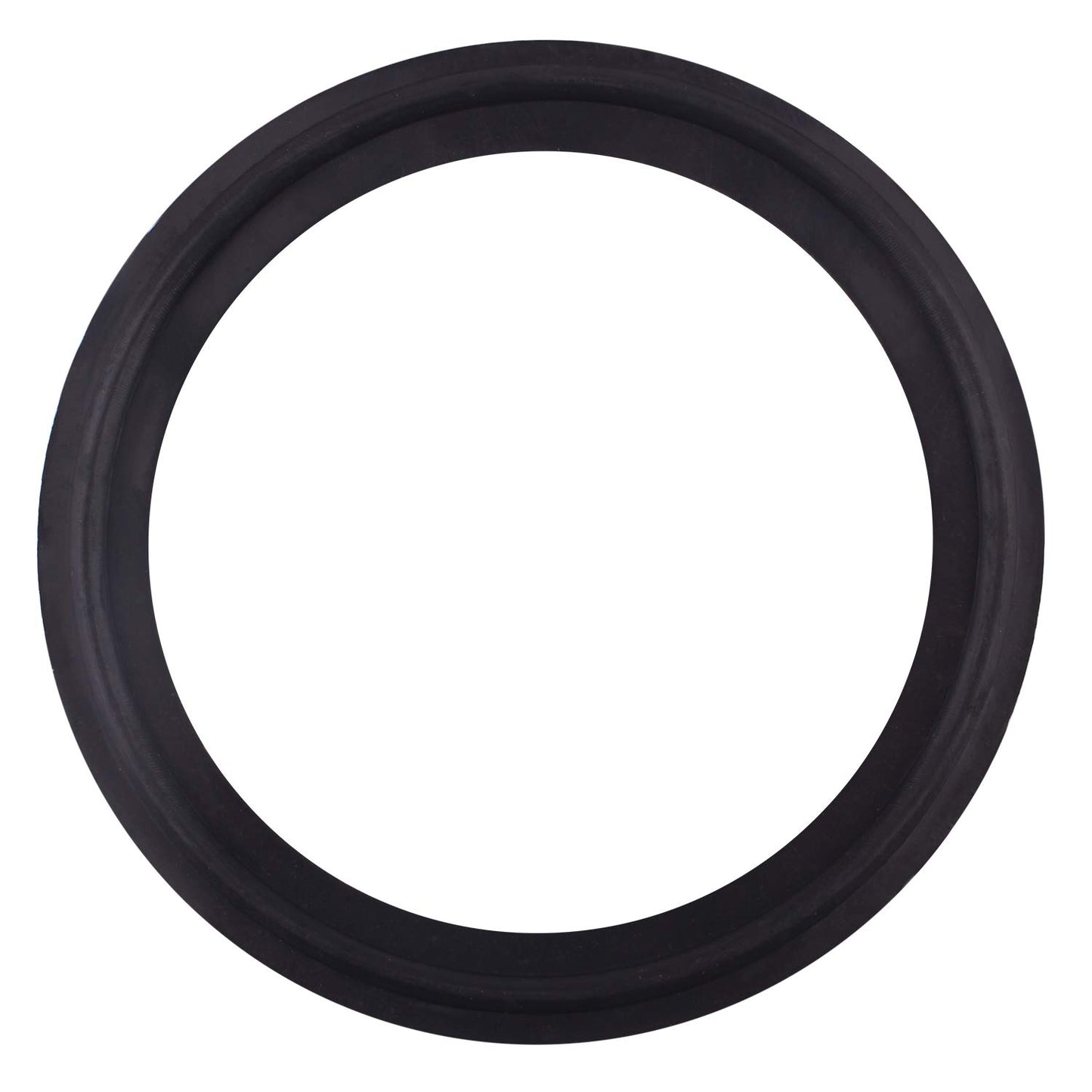

Viton Rubber Gasket|Tri-clamp|O-Ring Fits Sanitary|Tri-Clover Type Ferrule 1.5 inch to 12 inch

$5.89 $3.59

Features:

For Tri-Clamp 1.5"

  • Viton rubber gasket fit standard 1.5" tri-clover or tri-clamp fittings, apply to Pipe Outer Dia: 38mm / 1.5"
  • Outer Diameter : 50.5mm / 2"
  • Inner Hole Diameter : 34mm / 1.34"
  • Temperature Rating (spec): -30F to 400F
  • Made from food grade Viton Rubber, FDA Approved

For Tri-Clamp 2"

  • Viton rubber gasket fit standard 2" tri-clover or tri-clamp fittings, apply to Pipe Outer Dia: 51mm / 2"
  • Outer Diameter : 64mm / 2.5"
  • Inner Hole Diameter : 48mm / 1.89"
  • Temperature Rating (spec): -30F to 400F
  • Made from food grade Viton Rubber, FDA Approved

For Tri-Clamp 2.5"

  • Viton rubber gasket fit standard 2.5" tri-clover or tri-clamp fittings, apply to Pipe Outer Dia: 63.5mm / 2.5"
  • Outer Diameter : 76.5mm / 3"
  • Inner Hole Diameter : 58mm / 2.28"
  • Temperature Rating (spec): -30F to 400F
  • Made from food grade Viton Rubber, FDA Approved

For Tri-Clamp 3"

  • Silicone gasket fit standard 3" tri-clover or tri-clamp fittings, apply to Pipe Outer Dia: 76.5mm / 3"
  • Outer Diameter : 89mm / 3.5"
  • Inner Hole Diameter : 72mm / 2.8"
  • Temperature Rating (spec): -30F to 400F
  • Made from food grade Viton Rubber, FDA Approved

For Tri-Clamp 4"

  • Silicone gasket fit standard 4" tri-clover or tri-clamp fittings, apply to Pipe Outer Dia: 102mm / 4"
  • Outer Diameter : 114mm / 4.5"
  • Inner Hole Diameter : 98mm / 3.8"
  • Temperature Rating (spec): -30F to 400F
  • Made from food grade Viton Rubber, FDA Approved

For Tri-Clamp 6"

  • Viton rubber gasket fit standard 6" tri-clover or tri-clamp fittings, apply to Pipe Outer Dia: 152mm / 6"
  • Outer Diameter : 165mm / 6.5"
  • Inner Hole Diameter : 148mm / 5.83"
  • Temperature Rating (spec): -30F to 400F
  • Made from food grade Viton Rubber, FDA Approved

For Tri-Clamp 12"

  • Viton rubber gasket fit standard 12" tri-clover or tri-clamp fittings, apply to Pipe Outer Dia: 305mm / 12"
  • Outer Diameter : 317.5mm / 12.5"
  • Inner Hole Diameter : 297mm / 11.7"
  • Temperature Rating (spec): -30F to 400F
  • Made from food grade Viton Rubber, FDA Approved



This quality viton rubber gaskets are great replacements if your gaskets break on your blades, and this viton gasket offers a stable isolation performance even at a extremely natural conditions.
